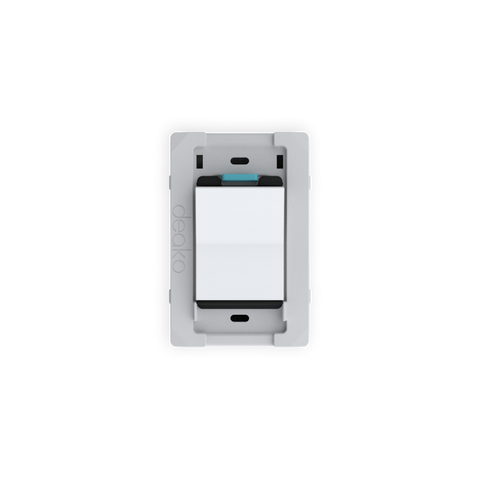

Wired Connector (Backplate) with Single Pole Simple Rocker Switch
Single Pole Simple Rocker Switch
Surface & Color: |
White Plastic |
Screen Sensor: |
None |
Scene Buttons: |
None |
Input Voltage: |
120 VAC |
Input Frequency: |
60 Hz |
Supported Currents & Load Types: |
15A Resistive/General Use |
Maximum Dimmable Load: |
N/A |
Compatible Wiring: |
Standard wiring. Neutral not required |
Wireless: |
None |
Size: |
1.77" X 1.70" X 3.50" |
Weight: |
2.4 oz |
Compatibility: |
Single pole only |
Integrations: |
N/A |
Operating Temperature: |
0 - 40 deg. C |
Environment: |
Indoor, Dry location only |
Warranty: |
1-year |
Wired Connectors™ (Backplates)
Compatibility: |
Single-Pole 3-way & 4-way circuits |
Height: |
4.45" |
Depth: |
1.38" |
Width: |
1-switch - 2.93" 2-switch - 4.75" 3-switch - 6.57" 4-switch - 8.34" |
Faceplates
Height: |
4.75" |
Depth: |
0.39" |
Width: |
1-switch - 3" 2-switch - 4.82" 3-switch - 6.64" 4-switch - 8.45" |
Does Deako require any special wiring?
No, Deako backplates work with existing wires in your home. Deako smart products do require a neutral wire which is common in any home built in the US or Canada within the past 40 years.
What if I have multiple switches side-by-side?

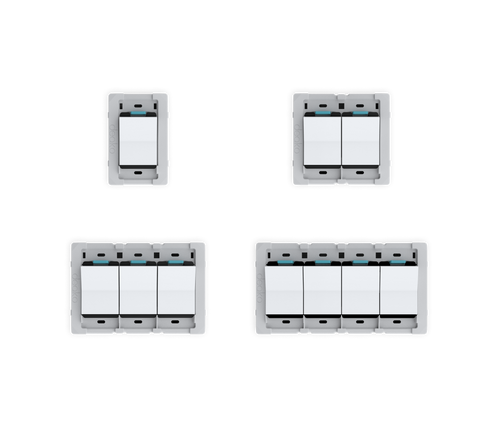

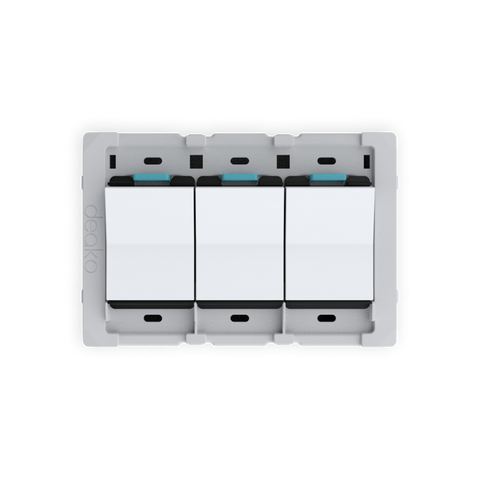

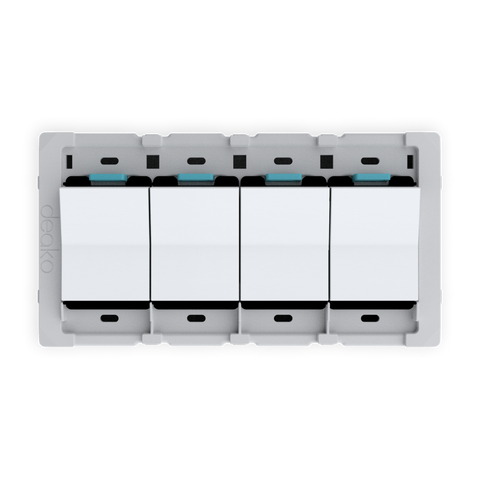

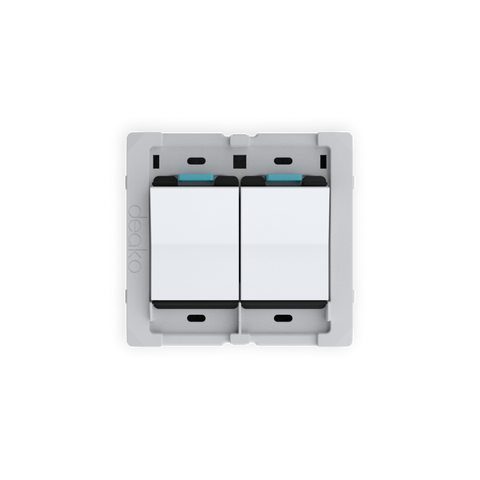

When multiple switches sit beside each other, this is called a multi-gang. We support 1, 2, 3, and 4-gang configurations. Use the drop-down menu on the Deako Store to select the correct number of gangs for your home.
Can Quickwire backplates be used on a multiway with wired backplates?
Yes, Quick Wire Connectors (backplates) and Wired Connectors (Backplates) can be used on the same multiway. Check out wiring diagrams for multiways here.
For more FAQs, visit our Support Center.
